TOXFREE ZH

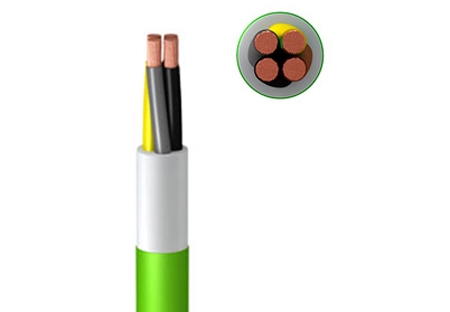

The halogen-free Toxfree ZH RZ1-K (AS) / DZ-K low voltage cable is a high safety cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment.

For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, metros, etc., as well as in computer centres, offices, production plants, laboratories, etc.

DESIGN

Conductor: Electrolytic copper, class 5 (flexible), based on EN 60228



Insulation: XLPE. / LZHF Rubber
The standard identification is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross setcion)
4 G Brown + Black + Grey + Yellow/green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Yellow/green + Blue

Outer sheath: LSZH  outer sheath. Green / Black colour, non-toxic and fire retardant.

Packaging: Available in drums and rolls (lengths of 50 and 100 m).

National norm / european: UNE-EN 60332-1 / UNE-EN 60332-3 / UNE-EN 50267-1 / UNE-EN 50267-2 / UNE-EN 61034

International norm: IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
