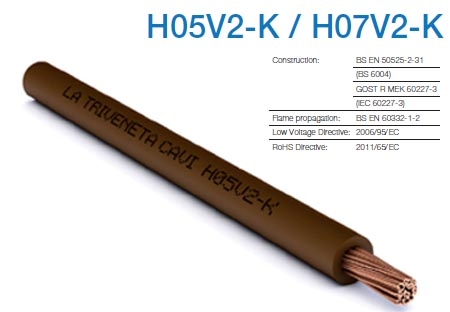

H05V2-K / H07V2-K
H05V2-K / H07V2-K - Flexible Panel & Control Wiring

In Stock


H05V2-K / H07V2-K:  Flexible Panel Wires
POWER CABLE PVC INSULATED & PVC SHEATHED


DESCRIPTION
Conductor:   Plain copper wire, flexible, class 5
Insulation:   Special 90°C PVC, TI3 quality
Colour:   Black, blue, brown, grey, orange, pink, red, light blue, violet, white, yellow, green, yellow/green, orange.
Two colour:   Any combination (H05V2-K)

TECHNICAL DATA
Construction:     BS EN 50525-2-3-1  | BS 6004  |  GOST R MEK 60227-3 |  IEC 60227-3
Flame Propagation:    BS EN 60332-1-2
Low Voltage Directive:  2006/95/EC
RoHS Directive:  2011/65/EC

CHARECTERISTICS
Rated voltage: - H05V2-K: Uo/U 300/500 V
 - H07V2-K: Uo/U 450/750 V
•  Max. operating temperature: 90°C
•  Min. operating temperature: -10°C(without mechanical shocks)
•  Max. short circuit temperature: 160°C

SPECIAL FEATURES
Good sliding properties in pipes, good abrasion resistance, easy stripping

INSTALLATION CONDITION
Minimum installation temperature: 5°C
Recommended minimum bending radius: 4 times the cable diameter
Recommended maximum tensile stress: 50 N/mm² of the cross-section of the copper

USE & INSTALLATION METHODS
For use inside electrical equipment in which the cabling operates in high temperature zones. Not to be used in contact with objects at temperatures above 85°C. Not allowed for static installation in distribution systems if the temperature exceeds 70°C.
Suitable for static and protected use inside lighting equipment or inside switching or control equipment, for alternating current up to 1000 V or direct current up to 750 V to ground (H07V2-K). (CEI 20-40, HD 516)
You can Download the datasheet from the below link


H05V2-K_H07V2-K_REV001.pdf

View the Product Gallery


H07V2-K
