FG7M1 / FG70M1
Halogen Free Multi Core Power Cable

Available On Request

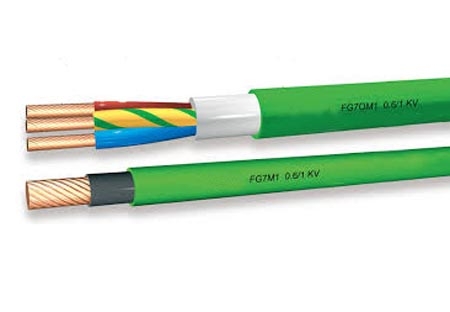

FG7M1 / FG70M1: 0.6/1kV Halogen Free Power Cable
POWER AND CONTRLL CABLE INSULATED IN G7 HIGH QUALITY HEPR NOT PROPAGATING FIRE, HALOGEN FREE AND WITH LOW EMISSION OF SMOKES, TOXIC AND CORROSIVE GASES

STANDARDS
CEI 20-13 CEI 20-38 CEI UNEL 35382 - 35384 CEI EN 60332-3-24 (CEI 20-22 III) CEI EN 60332-1-2 CEI EN 60754 CEI EN 61034-2 CEI 20-37/4-0

Nominal voltage: 0.6/1 kV
Test voltage: 4000 V
Max Voltage:  1200V
Temperature Range: -15 to +90 Deg.C

TECHNICAL DATA
Conductor:    Flexible Bare Copper Conductor Class 5, CEI 20-29
Core Insulation: HEPR Insulation G7 Quality
Filler:  Non Fibrous and Not hygroscopic filler
Outer Sheath: Thermoplastic Sheath in M1 Quality


Common features
Power and control use outdoor and indoor applications, even wet. Suitable for fixed installations at open air, in tube or canals, masonry, metals structures, overhead wire and for direct or indirect underground wiring. The most important property of this kind of cable is its protection against smokes, toxic and corrosive gases in case of fire.

Employment
Minimum bending radius per D cable diameter (in mm):
Power flexible cables, class 5 = 4D
Control flexible cables, class 5 = 6D
Maximum pulling stress:
During installation= 50 N/mm²
Static stress = 15 N/mm²

Packing: Drums

Core colours:
Single core: Black
Two cores: blue-brown
Three cores: brown-black-gray (or blue-brown-Y/G)
Four cores: blue-brown-black-gray (or Y/G instead blue)
Five cores: Y/G-blue-brown-black-gray (or black instead Y/G)
Multicores: black with numbers

Sheath colour:  Green / Any other colour as per request

Ink marking: GENERALCAVI - IEMMEQU - CEI 20 22III - CAT. C - year - FG7(O)M1-0,6/1 kV - form x sect. - inner work order - progressive lenght
You can Download the datasheet from the below link


FG70M1.pdf

View the Product Gallery

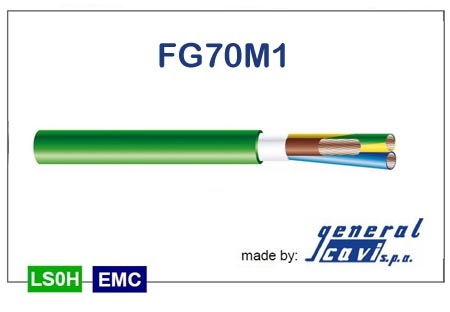

FG70M1 Cable


FG70M1
