YSLY-JZ
Flexible Control Cables - Unshielded Grey

In Stock

YSLY-JZ: Flexible Control Cable
FLEXIBLE, NUMBER CODED CABLE FOR MEASURING & CONTROL APPLICATIONS

STANDARDS
VDE 0472 / IEC 60332-1
VDE 0295 / IEC 60228 CL.5
VDE 0290/ 0281/ 0245/ 0293
CEI 20-34/2-1 (CEI EN 60811-2-1)
ASTM n.2 IRM9022

Nominal voltage – 300/500 V
Test voltage - 4000 V
Temperature Range: -5 to +80 Deg.C

TECHNICAL DATA
Conductor:    Flexible Bare Copper Conductor Class 5, CEI 20-29
Core Insulation: Core Insulation of PVC TI2 Type
Core Code:  OZ – Black Core with White Numbering
JZ – Black Core with White numbering  + Y/G Earth
Outer Sheath:  Outer Sheath of PVC TM2 Type, Grey RAL 7001


Common features
Multi conductor oil resistant cables suitable for connection to fixed or mobile devices, for signaling and control system. Suitable for indoor environment (dry or wet) , and for outdoor environment (only for a temporary and protected use). The selected raw materials and small outer dimensions, guarantee a good flexibility, and reduced weight, as well as a safe, economic and fast installation.

Employment
Minimum installation and use temperature: 0°C
Minimum bending radius: 15 x external diam. (mobile installation)
10 x external diam. (fixed installation)
Max. Pulling force: 50 N/mm2 (during installation )
15 N/mm2 (static stress)

Packing: 100m ring inside Heat Shrink Packaging 500m, 1000m drum.

Core colours: Black, white numbered (YSLY-OZ) + G/Y (YSLY-JZ)

Sheath colour: Grey RAL7001

Ink marking: GENERAL CAVI VDE-Reg-Nr 8390 YSLY-JZ 300/500V [n° cond] x [sec.] batch number Batch Data

You can Download the datasheet from the below link


012_14_YSLY_GNC.pdf

View the Product Gallery

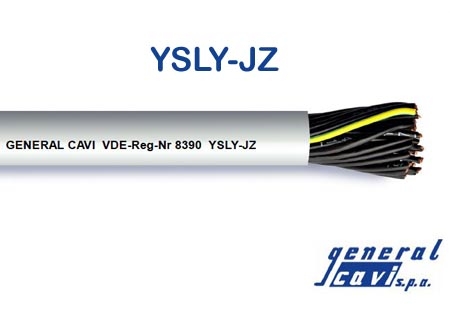

YSLY-JZ Cable
