H07RN-F Rubber Flexible Cable
High Performance Rubber Insulated Flexible Cable suitable for Industrial application

In Stock

HO7RN-F High Performance Rubber Flexible Cable
ENERGY TRANSMISSION RUBBER INSULATED CABLES WITH SPECIAL SHEATH SUITABLE FOR FIXED LAYING, MOBILE LINK AND HEAVY MECHANICAL SERVICE

STANDARDS
CEI EN 50525-2-21, CEI 20-107/2-21, CEI 20-19/4 (CENELEC HD 22.4 S4), BS 7919:2001,
NF C 32-102-4, VDE 0282-4,  CEI EN60332-1-2, (CEI 20-35) BS EN 60332-1-2, NF EN 60332-1-2, DIN EN 60332-1-2

Nominal voltage U0 - 450 V
Nominal voltage U - 750V
Test voltage - 2500 V
For fixed and protected installation Maximum voltage  – 1000V Um

Common features
This cable is suitable for dry, humid or wet environments (AD6) in open air, in workshops with an explosive atmosphere. When used for connections they're subjected to medium mechanical stress like equipment in industrials and agricultural workshops, great boilers, heating plates, portable lamps,
Electric tools like drills, circular saws and so on, electric home-tools, motors or transportable generators in construction sites or agricultural plants and so on. It can be used even in fixed laying like floors and temporary construction site set offs. Ozone resistant OIL RESISTANT EN 60811-2-1.

Employment
Minimum bending radius per D cable diameter (in mm):
Fixed installation: D<8=3D D<12=3D D<20=4D D>20=4D
Free Movement:  D<8=4D D<12=4D D<20=5D D>20=6D
Maximum pulling stress: 15 N/mm2 section of copper dynamic applications, for fixed 50 N/mm2

Packing
100mt. rings in thermoplastic film or drums to agree.

Core colours
Single core: black
Two cores: blue-brown
Three cores: Brown - Black - Gray (o Y/G, Blue and Brown)
Four cores: blue-brown-black-gray (or Y/G instead blue)
Five cores: Y/G-blue-brown-black-gray (black no Y/G)
Multicores: black with numbers and Y/G

Sheath colour: Black

Ink marking: GENERAL CAVI - IEMMEQU <HAR> - H07RN-F – year

Note
Cables can be used up to +85°C (for fixed protected installations) OZONE RESISTANT" according to the standards CEI EN 60811-2-1 (Test method A) and CEI EN 50396 (Test method B).

You can Download the datasheet from the below link


H07RNF90°C.pdf

View the Product Gallery

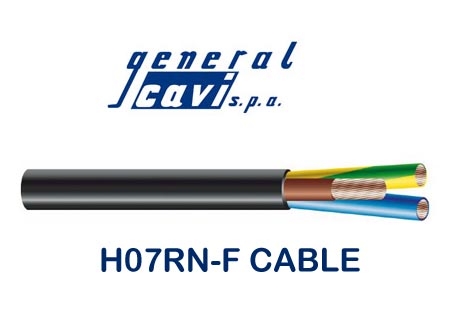

H07RN-F Cable
