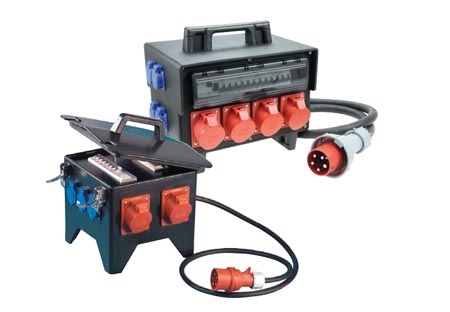

Mobile Distribution Box
Distribution Box MOBILE - Solid Rubber & Thermoplastic

In Stock

Distribution Box MOBILE - Solid Rubber & Thermoplastic

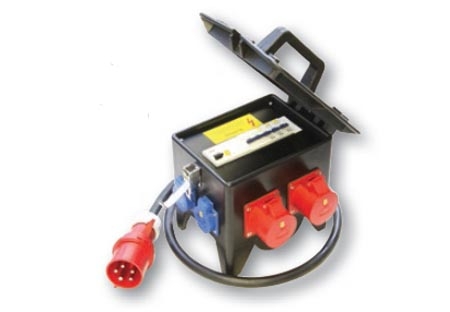

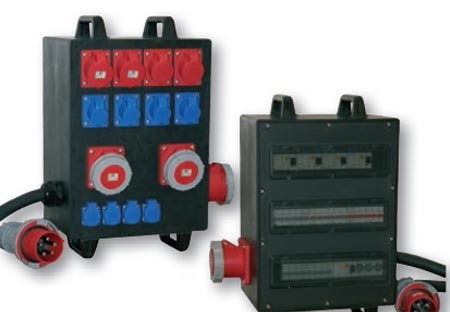

SOLID RUBBER DB – INFORMATION

Solid Rubber Housings
Our solid rubber distributor housings are made from a mixture of natural rubber, styrene and butadiene (NK/SBR). The raw material is processed – in slab form – at pressures of up to 400 t and at a temperature of 180°C. This triggers a vulcanization process which lends the distributor its final form without affecting its consistency.

Features
•  unbreakable, halogen-free and aging-resistant solid rubber housing
•  resistant to a diversity of oils, greases, gasoline and acids
•  high mechanical strength, aging and corrosion resistant
•  UV and ozone resistant
•  insensitive to fountains of welding sparks and similar
•  temperature resistant -30°C to + 80°C
•  not flammable according to EN 60695-11-5

Type of protection: IP54 (IP67 on request)
The protection degree of the complete product is defined by the unit with the lowest protection which is mounted.

Standard design
•  enclosure with carrying handle made of solid-rubber
•  entry: high-flexible rubber cable or plug
•  CEE sockets i.e. protective contact sockets made of PA6 with nickel plated exchangeable contacts
•  saftey device material under impact resistant, opening hinged window (opening angle > 180°)
•  all exposed metal parts of stainless steel. Captive screws
•  numbered electrical circuits and extension sockets – fast, clear identification
•  MCBs „C“ characteristics
•  RCDs 30mA, over all outlets
•  distributors wired to terminals (individual connection)

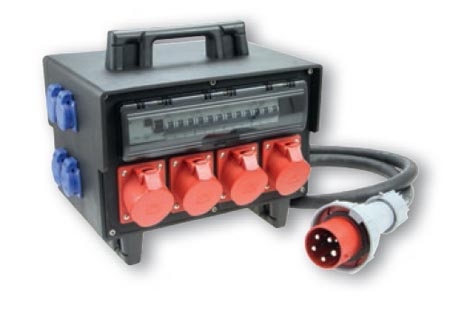

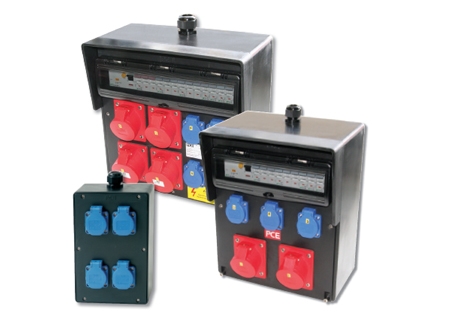

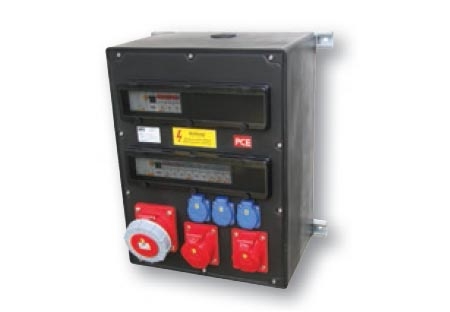

THERMOPLASTIC MOBIE DB - INFORMATION
Mobile thermoplastic distribution boxes are suitable for in- and outdoor areas. The boxes are available in different sizes and designs.

Protection degree: IP44, IP54 and IP66/67

The massive and high-quality enclosure made from PC/ABS tested and certified according to IEC/EN 62208* provides a wide range of positive features. Such as high impact resistance and notched bar impact strength, high thermal stability, dielectric strength, weather, UV and wear resistance, good insulation properties, and resistance against many chemicals. The material used is free from cadmium, red phosphor and halogens (fluorine, chlorine, bromine, iodine and astatine). Mobile thermoplastic distribution boxes are well suited for all applications. Especially in those areas that depend on high-quality, a robust enclosure and total reliability, such as in industry, trade, workshops, agriculture, household, public buildings, leisure, sport, marinas, camping, etc. Adjusted to your needs we put together individually tailored and optimally equipped wall distribution
boxes.
You can Download the datasheet from the below link


PCEDBMOBILE.pdf

View the Product Gallery
