Special Plugs and Sockets
ELV, Container, Caravan plugs & Sockets

Available On Request

Extra Low Voltage Plugs and Sockets
Protective extra-low-voltage is a preventive measure for use under extreme conditions. The rated voltage (AC) is limited by max. 50V. Special working conditions like conductive environment in or on boilers, pipelines, containers, metal frames or limited freedom of motion require the use of extra-low-voltage plugs and sockets. The new “Twist” extra-low-voltage series provides a complete range of plugs, connectors and flanged sockets which meet all installation requirements, specially developed for use on building sites, shipyards and in factories. Connecting the cable is fast and reliable! No tools are neededfor assembly

Plugs and Sockets - 7 Pole
7 Pole (6P+E) Industrial plugs and sockets cover a wide range of application like Motor Star-Delta Connections, Tapped Winding Connections, Actuation, Monitoring, Controlling, Indicating, Electrical Interlocks and many more....

Container Plugs and Sockets
PCE container plugs and sockets are specially designed for the rough condition on reefer-containers, at harbors and terminals.....

Caravan Plugs and Sockets
PCE caravan devices are perfectly designed for the use on camp sites, caravan and marinas.

Products includes -  Plug and connector, Flanged socket lockable, Wall mounted plug, Angled plug, angled connector, Adapters, Distribution products, Energy pillars

P-Nova,Taurus & Nautilus Series Plugs and Sockets

The “P-Nova“ socket outlet with earthing contact is characterized in particular by its:
•  Robust construction based on high-grade polyamide,
•  Screwless connection technology or screw contact system (connection from the rear or the side)
•  Various flange sizes
•  Four-point mounting
•  Special sealing contour for IP54 on the backside

Nautilus Watertight Plugs and Sockets IP66/68
•  robust design for severe conditions
•  housing material PC/ABS
•  IP66/68 waterproof up to 2 bar / 2 h
•  cover with bayonet very large hinged lid opening angle (~160°)
•  contact-supporting part of PA6, glow wire test 850°C
•  open contact screw head +/-
•  nickel-plated screw terminals
•  cover and cap with elastic band
•  axels and mounting screws in stainless V2A quality
•  two earthing system (plug)
•  screwless cable gland (plug/connector)

Taurus Plugs and Connectors
•  IP44
•  for severe conditions
•  16A 250V~
•  rubber and solid rubber
•  single and dual-point earthing system
You can Download the datasheet from the below link


PCESpecialPlugsandSockets.pdf

View the Product Gallery

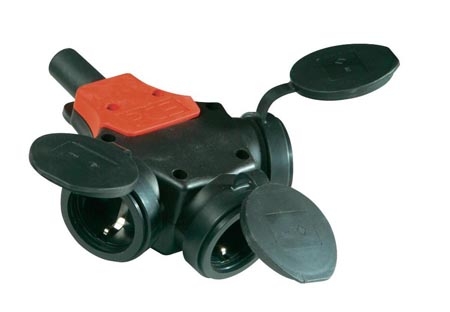

PCE Solid Rubber 3 Way Connector


PCE Solid Rubber Straight Connector

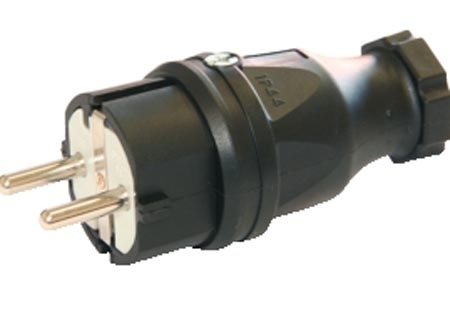

PCE Solid Rubber Plug 16A 2P+E


PCE ELV Plug 16A 24V

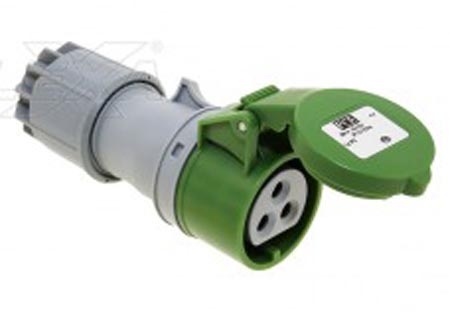

PCE ELV Connector 16A 48V

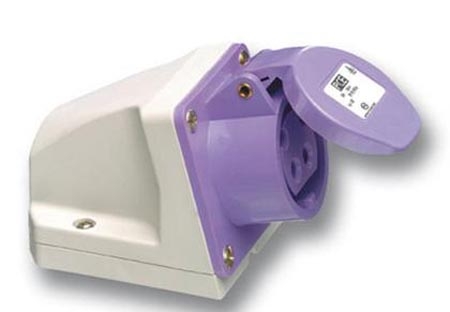

PCE ELV Wall Socket 16A 24V

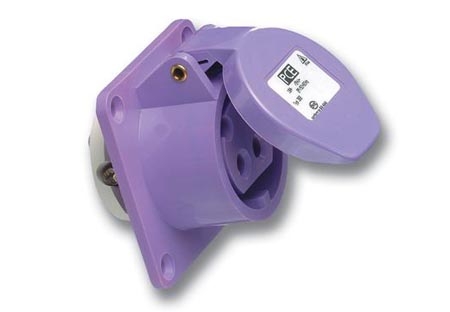

PCE ELV Panel Socket 16A 24V

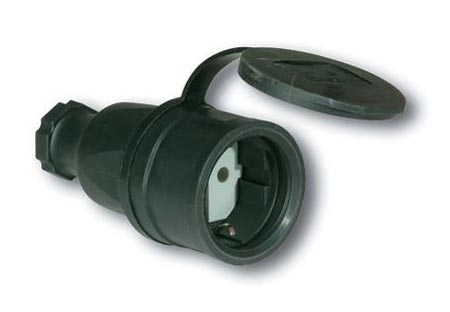

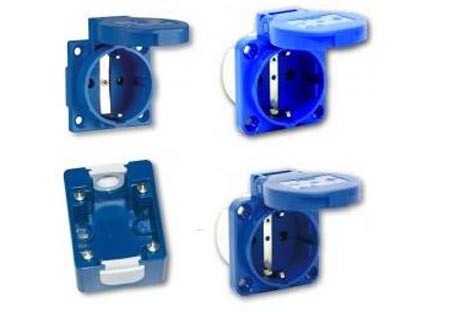

PCE Schuko Sockets
